How Designing for User Experience Can Save Lives

When someone severely injures or punctures one of their lungs, breathing becomes risky. The healthy lung must continue to receive airflow to keep the blood oxygenated, but the injured lung must not receive any airflow because the air will leak out of the lungs and into other parts of the body. This can lead to an acute condition called tension pneumothorax, where escaped air builds pressure in the surrounding cavity and restricting circulation and affecting heart function.

To successfully perform a lung isolation and single lung ventilation, EMTs and emergency room nurses work under extreme stress and must make quick observations and decisions including assessing the injury and determining which lung is damaged. Next they must insert tubes into the patient’s airways and configure a set of controls to direct airflow to the healthy lung. Depending on the tubes that are available, configuration involves adjusting multiple knobs/valves or using other tools to manipulate them.

Having gone through EMT training himself and with a brother who works in a hospital, Caleb is all too familiar with the shortcomings of these devices and how they may cause physical harm to patients as well as stress to the user. Through his hands-on experience with the equipment, he realized that an improved design may reduce the risk of user error and ultimately save more lives.

Key Challenges to Solve

Since Caleb had never developed a product before, he wanted to work with a company that could guide him through the process from start to finish. He also needed to find a company that has experience with the FDA regulatory processes to create an approved device.

  • Speed up the process of configuring and re-configuring lung ventilation tubes
  • Reduce the rate of user error by designing a device that included an enhanced user experience (in this case the user is an EMT)
  • Device must be properly engineered to be manufactured as a Class I medical device under strict FDA quality controls and risk management regulations

The Development Process

We put together a team of industrial designers, biomedical engineers and mechanical engineers to research, design, prototype and test several different versions of his device. We applied human factors engineering principles from concept through all stages of prototyping to create a device that provides an enhanced user experience.

Highlights from this project:

Concept Exploration

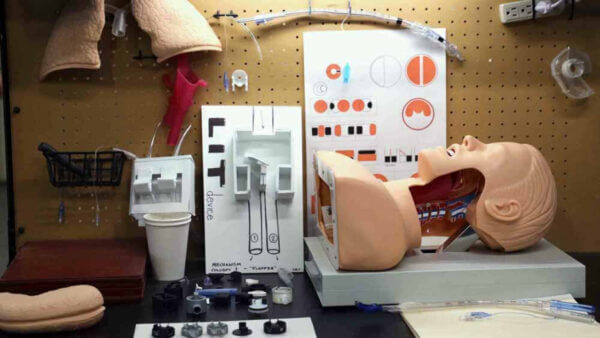

Industrial designers drafted dozens of different concepts to show Caleb so they could collaborate on high-level design ideas.

UX/UI Design and Prototyping Using 2D and 3D Methods

We used these methods as a cost-effective way to explore and validate different concepts and mechanisms further.

LIT Medical Device

Mechanical Design via 3D Computer Modeling

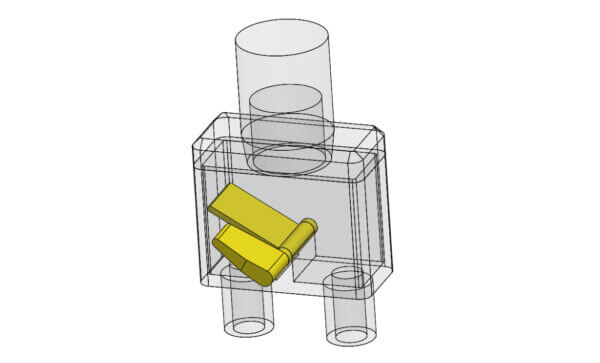

Mechanical engineers used CAD software to generate fully functional 3D models of the selected design concepts.

3D Printing Partial and Fully Functional Prototypes

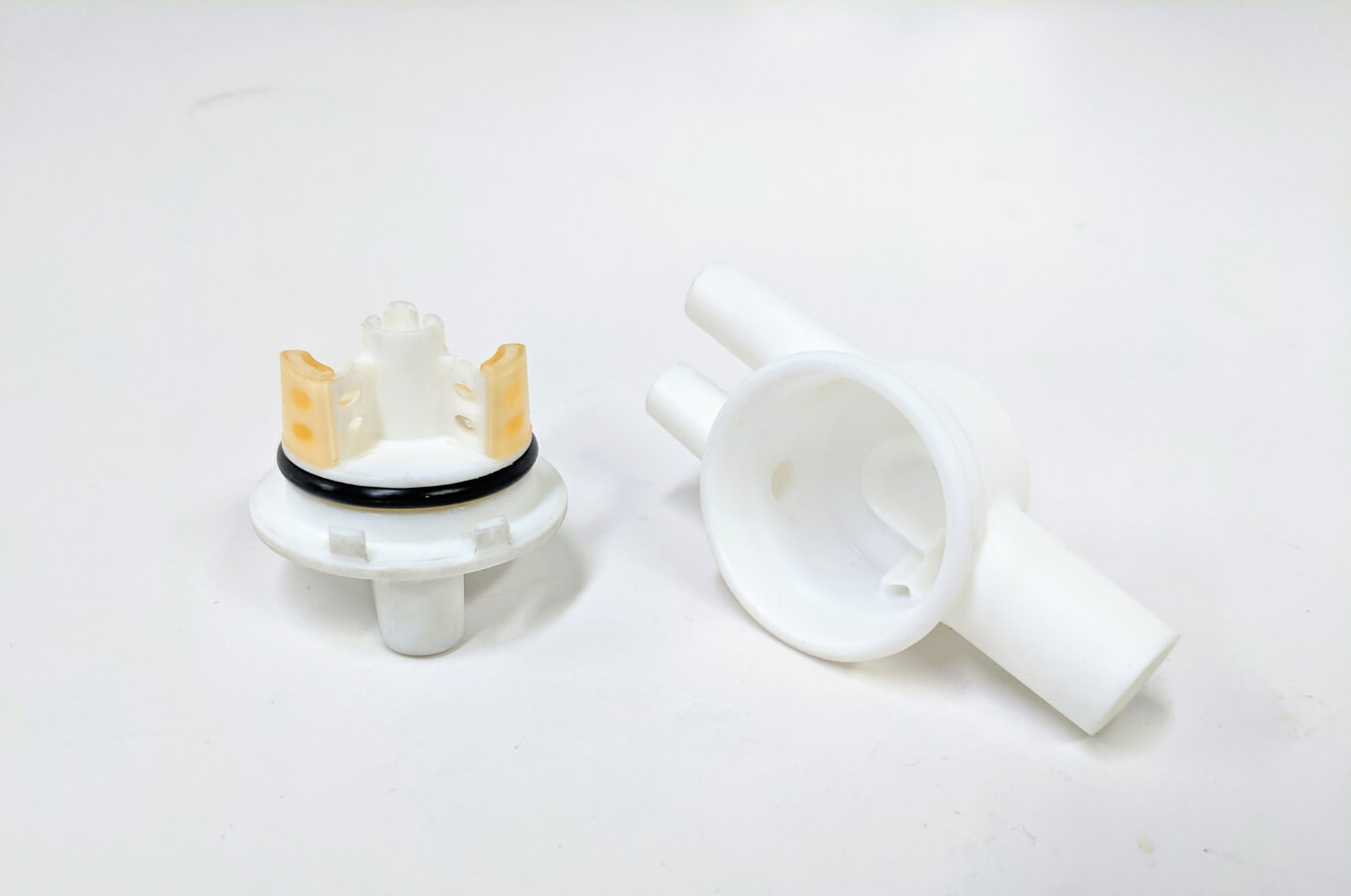

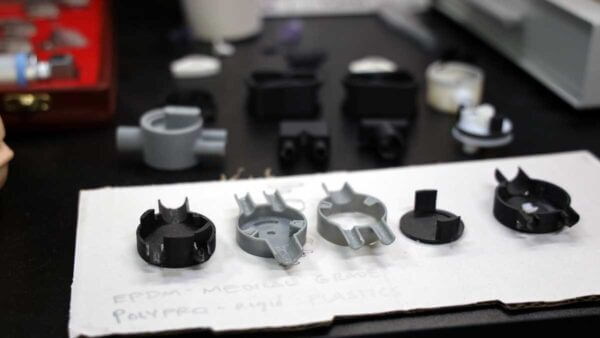

We printed multiple mechanisms and UI elements to determine which design provided the best user experience.

LIT Medical Device

The Results

Visual Feedback:
Single control knob points toward either tube, allowing users to quickly understand which one is receiving airflow.

Auditory & Tactile Feedback:
The knob “clicks” into place, notifying the user that the configuration has changed through both a sound and physical sensation.
Together, a stronger feedback loop between the device and the user is created, allowing time and mental effort to be reallocated to monitor the patient and away from the device controls.
With a functional prototype in his possession, Caleb is leveraging his own connections as well as his brother’s to get hands-on user feedback from healthcare professionals to continue to improve the device and prepare it for manufacturing.
To get in touch with Caleb and learn more about LIT Device, visit

LIT Medical Device
LIT Medical Device

The folks at Kickr Design have been an incredible asset. Their level of efficiency and professionalism has been a pleasure to work with. Their capabilities have made the product development process incredible! I enjoy bragging about the work Kickr does and I highly recommend their services!”

Caleb, LIT Medical Device
